Canopy Cowl for Apache

Rysquedases created the topic: Canopy Cowl for Apache

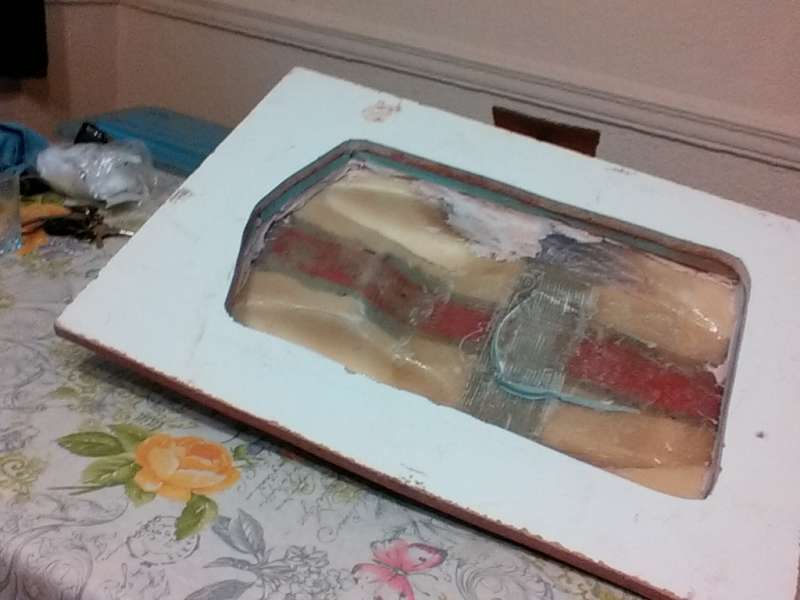

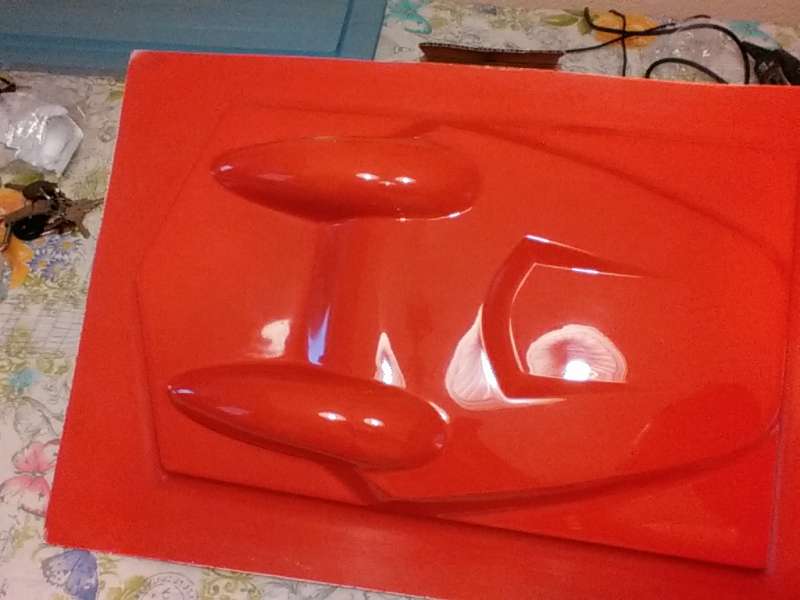

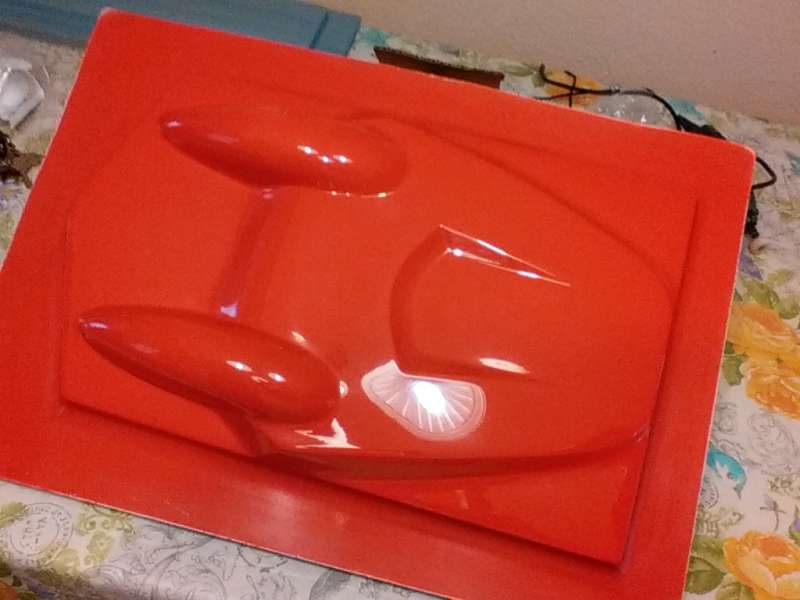

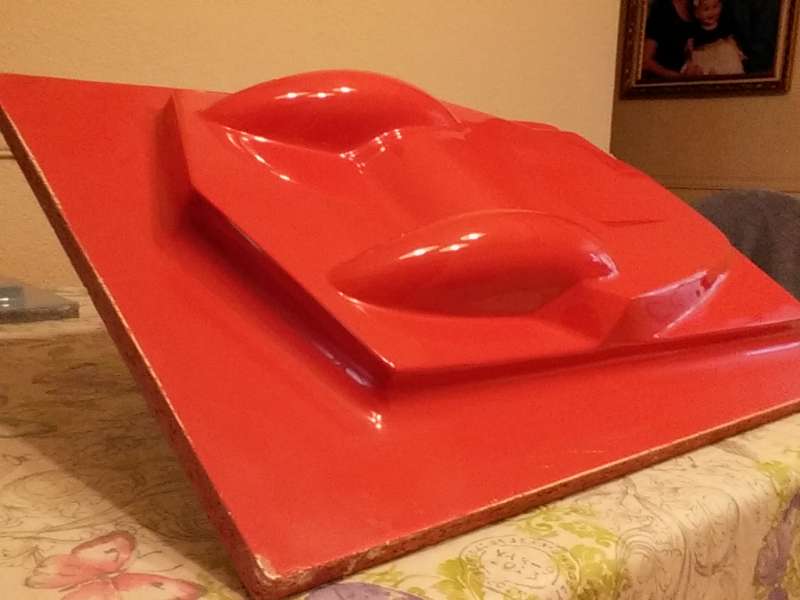

Here is a shoreline Protege cowl I stretched, widened and modified for Apache deck to see if it can pull more heat out of the engine bay. Plug is done and hope to have the mold done soon.









#23225

Please Log in or Create an account to join the conversation.

Rysquedases replied the topic: Canopy Cowl for Apache

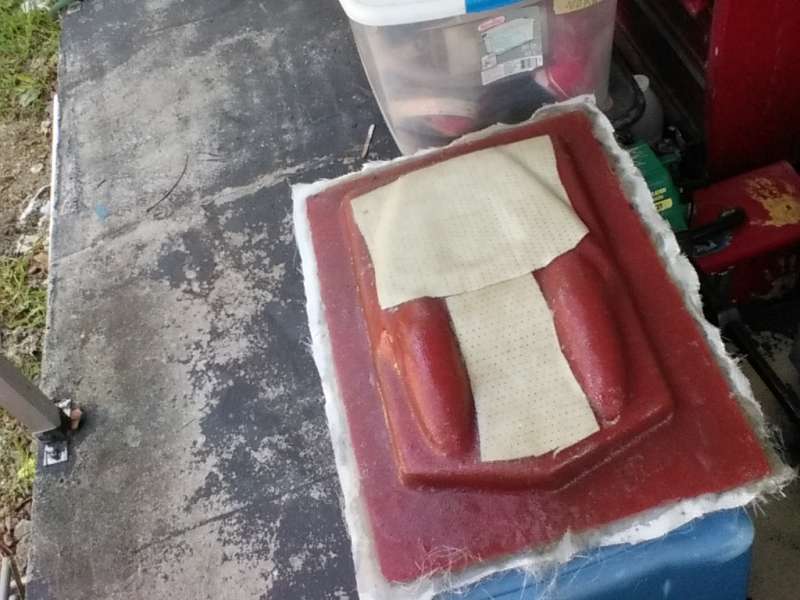

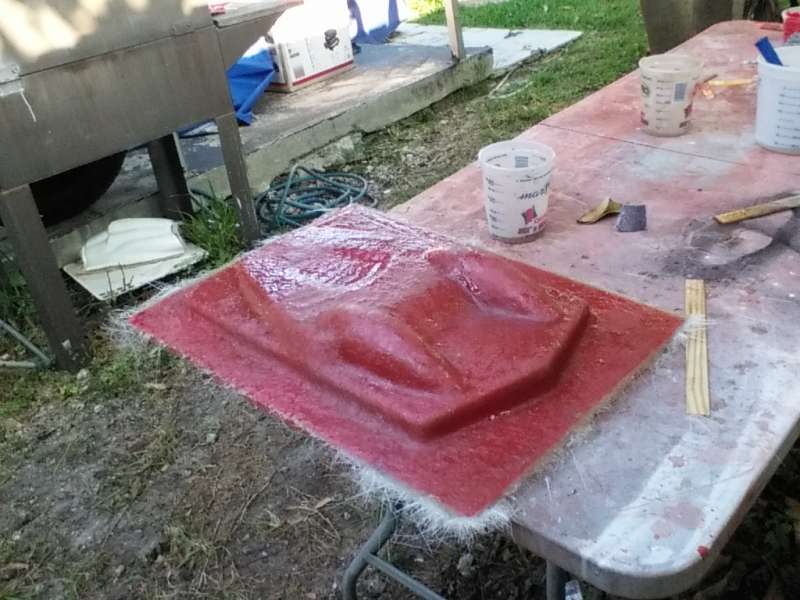

Not sure what the exclamation point on the thread means but I'm almost done. One more lam schedule and I'm popping this hatch.


Done.
#23495
Attachments:

Please Log in or Create an account to join the conversation.

Rysquedases replied the topic: Canopy Cowl for Apache

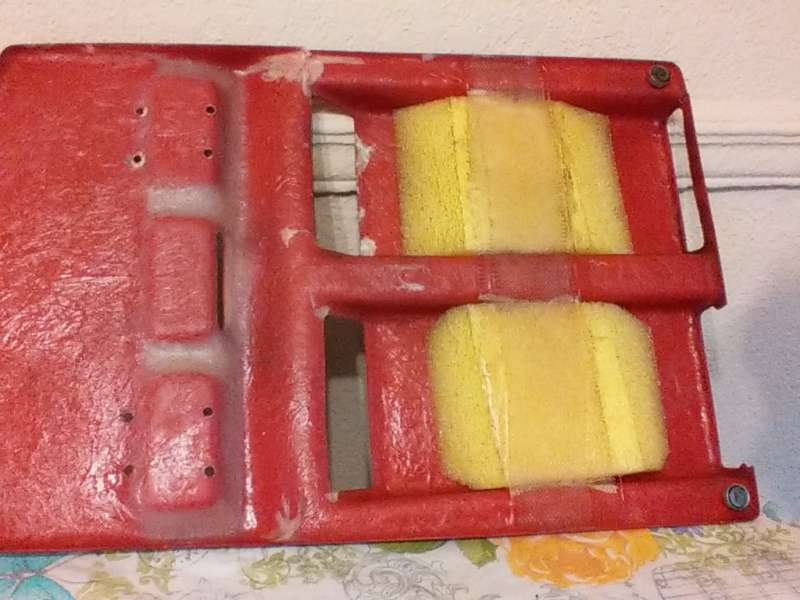

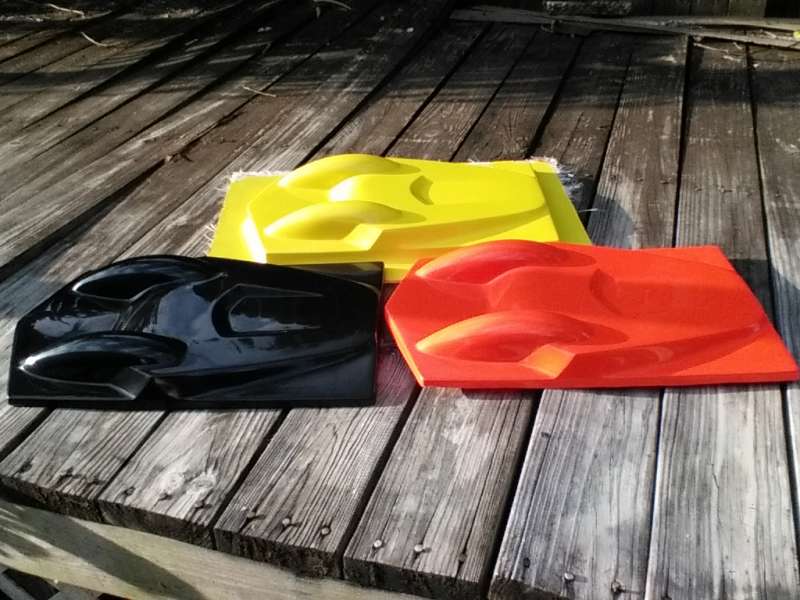

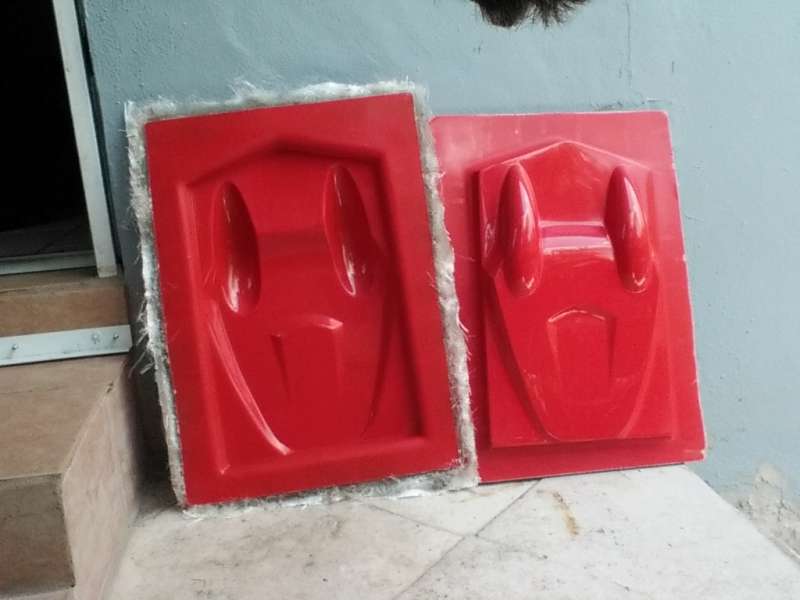

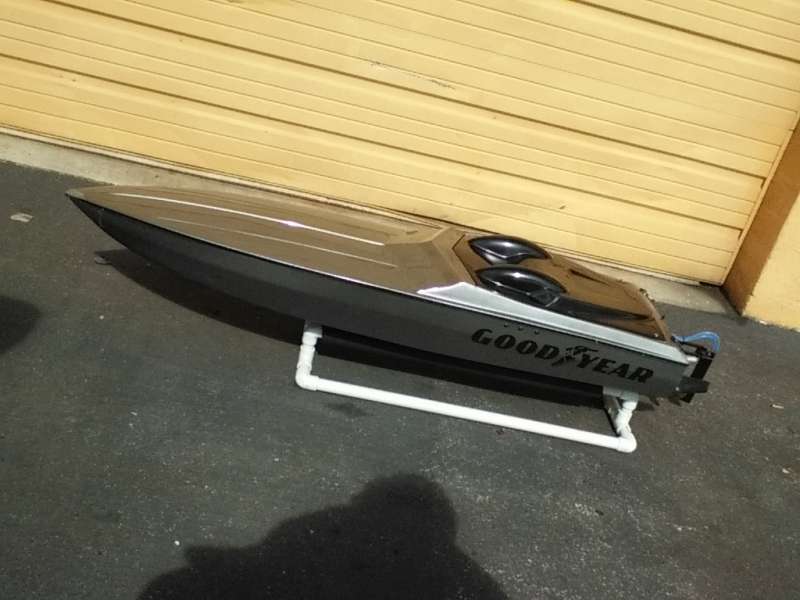

Snap crackle pop!




#23509
Attachments:

Please Log in or Create an account to join the conversation.

martno1fan replied the topic: Canopy Cowl for Apache

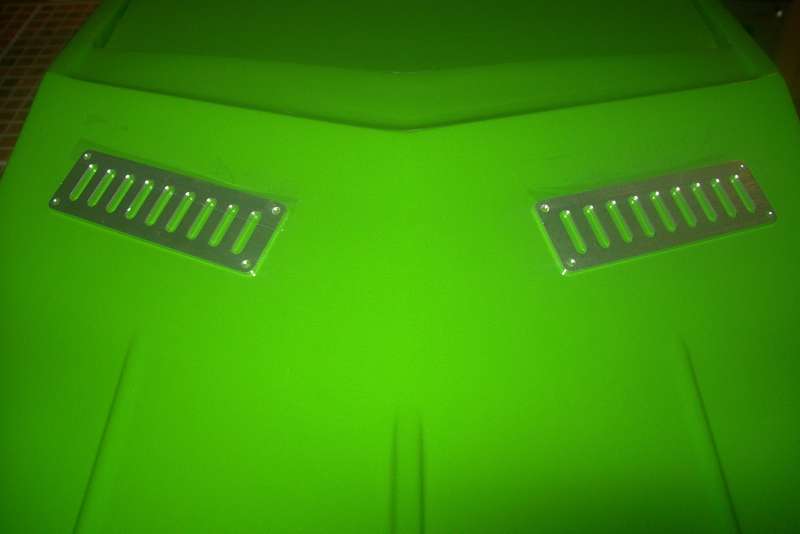

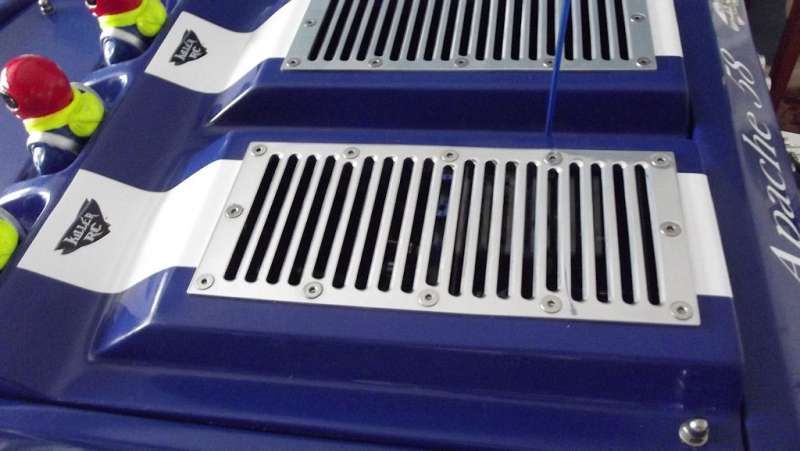

Cowl looks good but why are you having problem getting heat out of the Apache hatch thats the easy part,its getting air in at the right place thats the tricky part,a few ways you can do it other than putting naca ducts on the deck which i dont like on the Apache.Just have to remember the rule 3 x out to 1 in and your good.
Mart





#23603
Attachments:
The following user(s) said Thank You: Rysquedases

Please Log in or Create an account to join the conversation.

Rysquedases replied the topic: Canopy Cowl for Apache

The main reason was to eliminate drivers and be a legal to race. The surface of the canopy hatch runs flat with the wind shield and the hope is that the wind drag over the surface of the venturi style duct pulls the air from behind the engine and the pipe area. The opening on the port canopy will direct air to the front of the engine and exhaust . This hatch is a bit more structural and and a lighter lay up is possible.

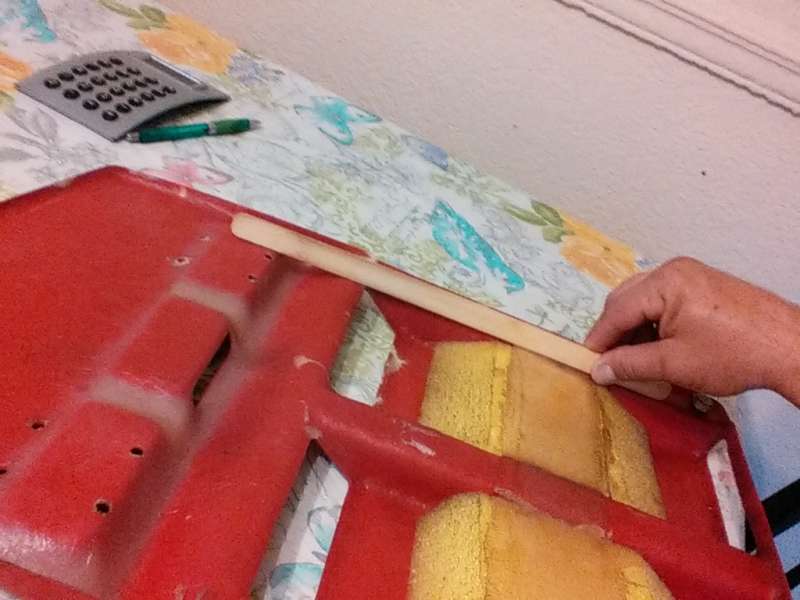

I really like the original hatch but something needs to be done about the weak spot behind the bolster seats. Need a stringer design the bolster to bridge to rear box intakes. The racers hear slam them up good.

Enrique



I
#23623
Attachments:

Please Log in or Create an account to join the conversation.

martno1fan replied the topic: Canopy Cowl for Apache

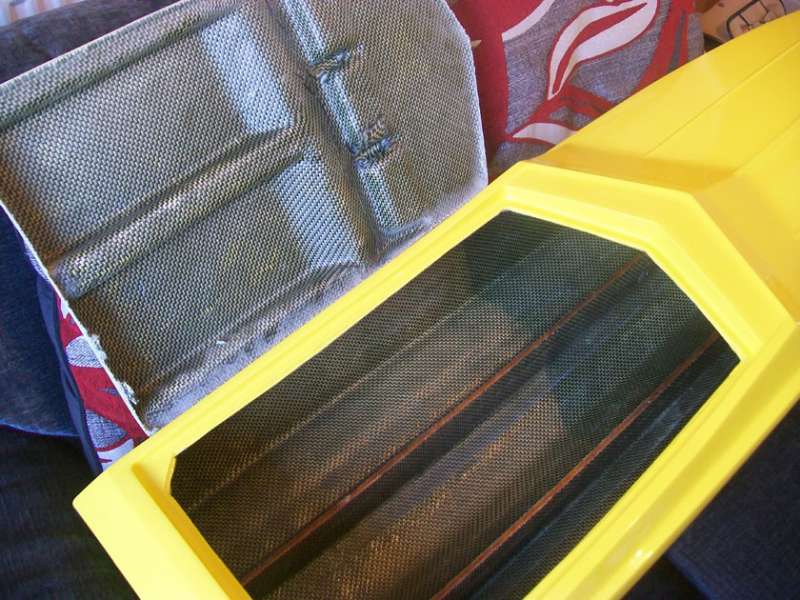

For strength i allways make mine now using a layer of mat then cloth ,i dont make them in mat alone anymore.Lay them up with cloth and theyre very strong especially if you use carbon kevlar which is a dream to work with,it drapes so niceley and goes into all the contours pretty well,i only needed to make a cpl small cuts here there to do this canopy in one piece.
#23624
Attachments:

Please Log in or Create an account to join the conversation.

Rysquedases replied the topic: Canopy Cowl for Apache

Nice lay up their Mr. Mart .
#23625

Please Log in or Create an account to join the conversation.

Motorboater replied the topic: Canopy Cowl for Apache

Nice work everyone ;)
I'm a fan of the cloth aswell. You don't need nearly half as much resin to wet it out and it certainly is much stronger. I alternated mat and cloth when making mine (mat/cloth, mat/cloth, mat/cloth). For us non racer sport boating guy's, polyester and gelcoat are more than capable of serving our needs for many years. Great work people, good to see.
#23631

Please Log in or Create an account to join the conversation.

martno1fan replied the topic: Canopy Cowl for Apache

Thanks guys,ive been manufacturing my hulls for 5 years now on a part time basis and theyre used by racers and sports boaters alike.I allways do matt first then cloth,thats it one layer of each,im using 450 g biaxial cloth over 400 g csm,if im using carb kev then i use 380 g over the csm.They come out nice and strong,i like the csm as it adheres better to the gelcoat,this reduces any cracking over time.Its all done wet on wet to save on resin.
Mart

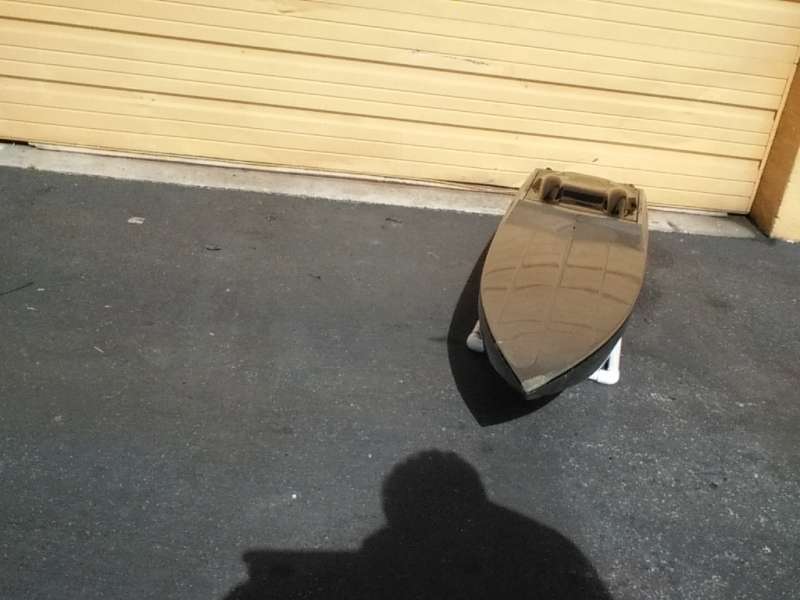

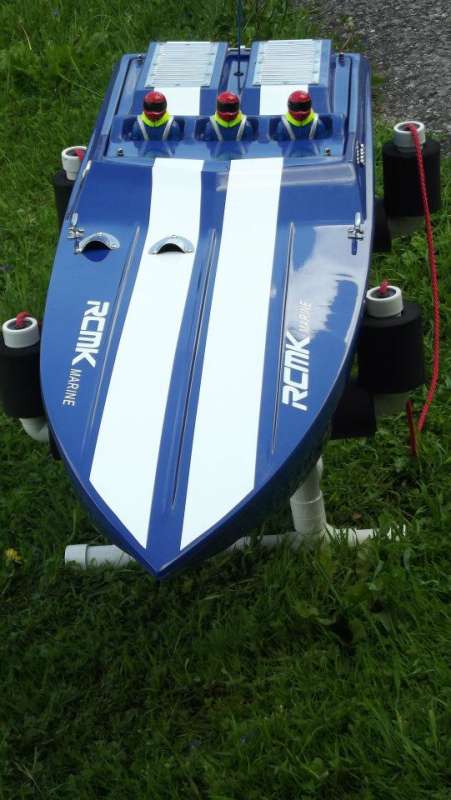

heres a cpl pics of my Apache and Apache Arrow racing.latter was taken in Trinidad on her way to a win in her first race,customer sent me the pic.



#23640
Attachments:

Please Log in or Create an account to join the conversation.

martno1fan replied the topic: Canopy Cowl for Apache

I forgot to say if you like hand layups try vinylester resin over your gelcoats its very strong like epoxy but easy to use in hand layups.
Mart
#23641

Please Log in or Create an account to join the conversation.
