A Visit with Komatsu-Zenoah

- by This email address is being protected from spambots. You need JavaScript enabled to view it., M&D designs Racing, LLC

Editor's Note:
Mike wrote this article in May/June of 2002 for a print magazine, however the article was never published. You'll notice that many of the things referred to as future actions have already been done! We are very pleased to present this article to our readers!







May 2002 Komatsu Zenoah Factory Visit



Almost everyone who has been around RC Boating (including the nitro guys) is familiar with the Zenoah G230PUM

Katsunori Kawazoe and Mike Hoffmeister, with prototype G260PU engine

engine, and the impact that it has had on the growth of Gas Boating. On the other hand, most of us know very little about the company that is responsible for developing and producing some of the best R/C boat Gas engines available. Recently, I had the opportunity to spend a day at the Komatsu-Zenoah (KZ) factory in Japan. It was an amazing experience, which I will never forget!

The day started by meeting with Mr. Katsunori Kawazoe, manager of overseas sales and support for Hobby Engines, at the Hotel Okura, and taking a 1.5-hour train ride from downtown Tokyo to the Zenoah plant in Kawagoe City, Japan. Upon arrival, we sat down in a conference room, and discussed how the day would proceed, including:







  • Overview and history of the company
    Katsunori Kawazoe with prototype G260PU engine
  • General technical discussions (mostly me asking LOTS of questions!)
  • Sneak-previews of some prototype R&D hardware, including one-off parts for the new G26PUM engine (the replacement for the venerable G230PUM marine engine)
  • A tour of the assembly line.





Designer, Takayoshi Shimazaki

Before leaving the conference room, Mr. Takayoshi Shimazaki joined us. Although he has been with KZ only about one year, he has taken the lead role in designing the new parts for the G260PU series of engines, and has taken over most dyno testing responsibilities - and what a job he has done! When I saw the box of prototype hardware, which he started to unload onto the table, and the smile on his face, I knew we were in for some real fun! Mr. Kawazoe and Mr. Shimazaki were kind enough to allow me to photograph some of these parts, which are included below. My first observations were of the cleanliness and organized appearance of the facility, the friendliness of the people, and the true passion that they have for their work!






Prototype G260PU engine

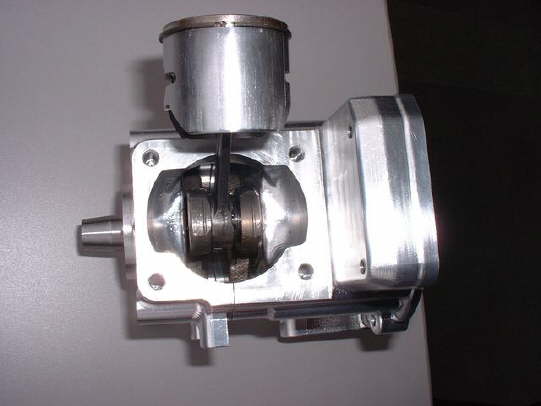

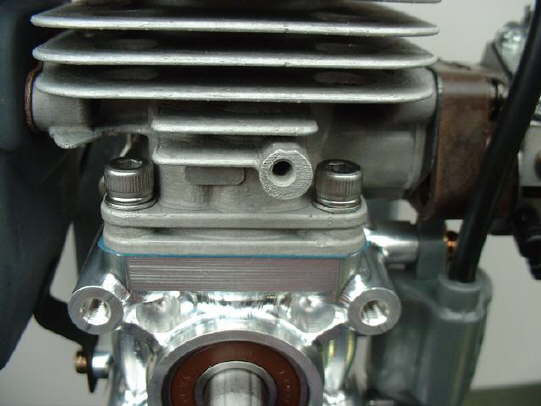

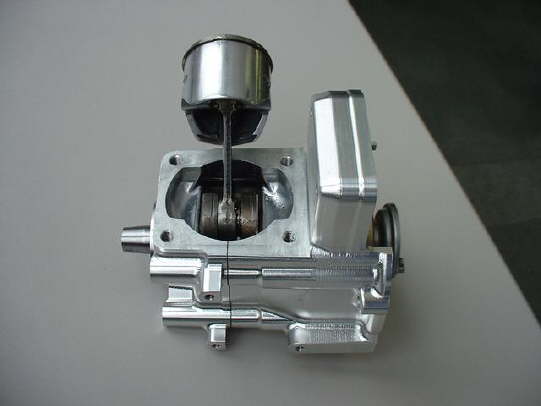

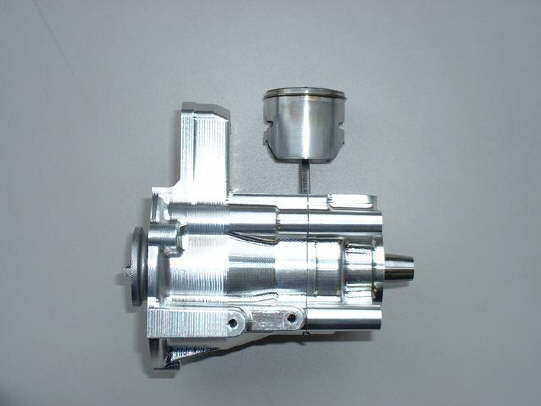

CNC-machined Billet crankcase, showing large transfer port feed pockets








Background of Komatsu Zenoah and Evolution of Hobby Engines

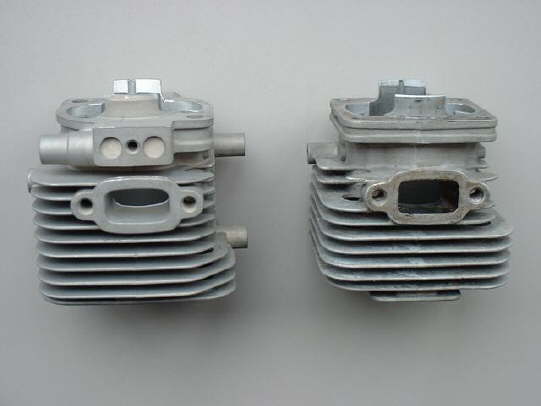

Comparison of prototype G260PU cylinder (with 4 mounting bolts) to the stock G230RC cylinder





Komatsu, the parent company, was founded in 1910, and today employs about 13,000 people. Komatsu's main products include construction equipment and machinery. Komatsu Zenoah is a subsidiary of the parent company, and employs about 800 people, working at two facilities.

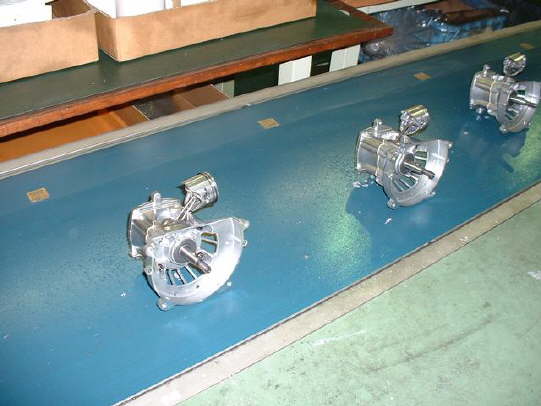

The KZ Head Office and Outdoor Power Equipment group (including Hobby Engines) is located in Kawagoe City. The Hobby Engine production line isvery modern, and utilizes a very efficient production line, using skilled labor , CNC and robotic equipment. Production capacity is 1500 units per day, or one engine coming off the assembly line about every 15 seconds!! The second facility, producing mainly hydraulic components, is located in Koriyama Japan.

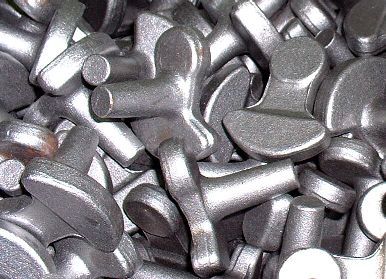

Raw crankshaft forgings, prior to any machining operations

According to Mr. Kawazoe, KZ first entered the Hobby Engine market in 1990, when they developed the G2D70 for the German RC Car manufacturer, FG. In the early 90's, different versions of the G2D70 were released to help grow new markets for R/C airplanes, helicopters, and of course - boats. The first marine version was a water-cooled conversion that was done by B.H. Hanson.

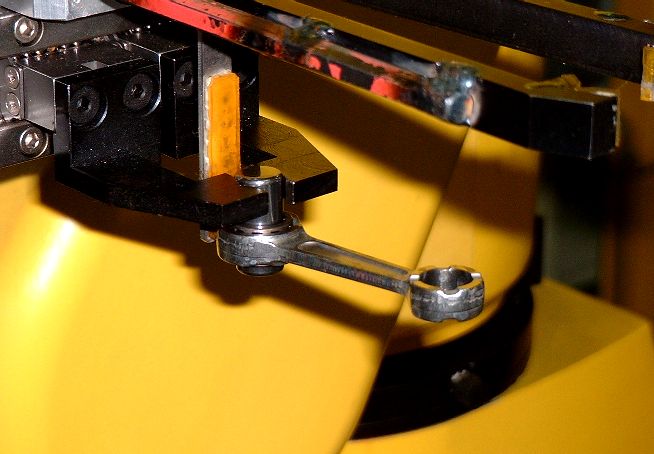

Robot picking up a connecting rod, with the big-end bearing and crank pin, on the way to the assembly press operation.



Then in the mid 90's, KZ saw that the R/C markets were growing, and appeared to be ready for a new line of engines. KZ's philosophy was that if they release new and improved engines, that they would further accelerate expansion of these growing markets. Therefore, in 1996, KZ released the G230PU line of engines. The PU is the airplane version, the PUH for helicopters, and the PUM for marine use. According to KZ, the number one reason for the new PU series was to support the growing demands of the RC airplane market, but a close second priority was to release the PUM, which was the first production Gas marine engine from KZ. KZ wanted to offer a more "Customer Friendly" engine, which would not require aftermarket conversion to water-cooling. After the release of the PU series of engines in 1996, KZ saw demand increase and sales accelerate, proving the wisdom of their Marketing Strategy!





Robots and crankshaft assembly press

A couple years later, in 1998, KZ had their first encounter with serious competition. The German company, SOLO, released a new purpose-built RC car engine, and over the course of the next two years, became the engine of choice in the European 1/4 and 1/5 scale car markets. KZ saw what was happening, and set out to develop an all-new, purpose-built engine to re-establish a competitive position in this market, which represents the majority

Display board showing: day's production quota of 1100 units, The instantaneous target of 867 units, and The actual status of 873 units (slightly ahead of schedule!).

of all Hobby Engine sales.



KZ's answer to the SOLO was the G230RC, which was designed in 2000, and first produced in early 2001. Why talk about a car engine in a boat magazine? Well…the G230RC happens to be an outstanding boat engine too! From the box-stock air-cooled version, to the various modified and water-cooled conversions offered by engine builders, the engine has been showing its strength in R/C boating in 2001. This experience has a lot to do with KZ's decision to develop an all-new PU series of engines, including a new marine engine - which will be covered a bit later.





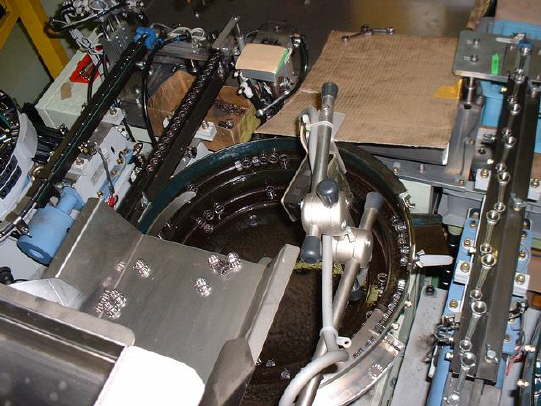

Automatic crankcase bolt installation and torquing process

In the first year, KZ produced and sold about 20,000 G230RC units!! About 8000 of them were sold to support the target market for R/C use, and nearly 2000 for "other" applications, which include boats. These numbers met KZ's sales projections. What KZ did not expect was the huge popularity of this engine for Goped Racers. 10,000 of the 20,000 units sold were for the Goped market, which helped KZ to far exceed expectations for this engine - another success story, and an example of KZ being rewarded for their innovation! To further grow this market in 2001/2002, KZ has just released a new "Bore-Up" kit for the G230RC, which increases the bore from 32mm to 34mm.



For the PU series engine, total sales have gradually increased from about 2000 units in 1996 (with less than 500 of them being the PUM marine engine), to over 5500 engines in 2001 (with nearly 2000 of them being the G230PUM marine engine). One of the biggest drivers of marine engine sales last year has been the rapid growth of the Ready-to-Run market, which is starting to favor the Zenoah engine. Although not their largest market, KZ is fully committed to supporting Gas Boating - and that is the subject of the next section! About 95% of all Hobby Engines are exported.

Mr. Kawazoe has been with KZ throughout their history in the Hobby Engine market, and has led most of the marketing and development activities. He is a technical expert, an excellent Marketing Strategist, and a genuinely nice guy!

R&D and Production Plans for the New G260PUM Engine



Based on the huge success and outstanding performance of the G230RC engine, KZ set out to re-design their PU series of engines. The bottom-end (crankcase, crankshaft/rod, and ignition) will be relatively unchanged, however the 4-port cylinder design, which has been so successful with the G230RC, will be carried over to the new PU series of engines. KZ utilizes Pro/E 3-D CAM design tools, and they work closely with key suppliers and their own machine shop to make prototype parts.



KZ also recognizes the insatiable desire for more cc's and more power, so they will be releasing the larger 34mm bore size as standard (resulting in a 25.4cc engine), however they will also supply a 22.5cc version initially, to monitor sales trends for both engines.



As of this writing, KZ has two functioning prototype engines, both 25.4 cc versions. These utilize a billet crankcase set, which was fully CNC-machined on a multi-axis machine, and a custom cylinder casting (please see pictures). Development will be completed with the PU version (airplane version), and then an initial run of all PU models (including the PUM marine engine) will be produced in early June. KZ will then do extensive durability and performance testing, and around the end of June will also send a limited number of samples to some of their distributors for testing and evaluation. After this dyno and field-testing is completed, any small changes that are required will be incorporated into the final specification for the engine, and full production will start in late September. So far, dyno tests of the prototype G260PU airplane engine show a 26% increase in HP, and 17% increase in torque, compared to the current production G230PU airplane engine. Similar improvements will likely be achieved with the marine engine.



The new G260PUM should mark a new era in affordable, out-of-the-box performance, and should also be a great engine to modify as well. Komatsu Zenoah has truly helped lead the way in the growth and development of Gas boating, and have proven themselves to produce dependable, durable, high-quality, reasonably priced products.



I would like to conclude by again thanking Komatsu Zenoah, Mr. Kawazoe and Mr. Shimazaki for their hospitality, and most of all for their huge role in the growth of Gas RC Boating!





Summary of key changes/improvements for the new G260PUM engine:

  • 2mm larger bore, resulting in 25.4cc displacement
  • Four main transfer ports, compared to only two for the previous G230PUM.
  • High-performance single-ring piston, with 1mm ring as standard
  • Larger, higher-volume water jacket
  • Improved port timings, based on G230RC engine
  • Big-bore carburetor as standard

  • G260PUM Specifications:
  • Bore: 34mm
  • Stroke: 28mm
  • Displacement: 25.4cc
  • Exhaust Duration: 162 degrees
  • Transfer Duration: 125 degrees
  • Piston Port Duration: 142 degrees
  • Engine Class: G-1 (NAMBA) or LS27 (IMPBA)
  • Output: 3.1 HP @ 12,000 RPM with open exhaust, 4 HP @ 14,400 RPM with M&D designs Muffled Tuned Pipe
  •






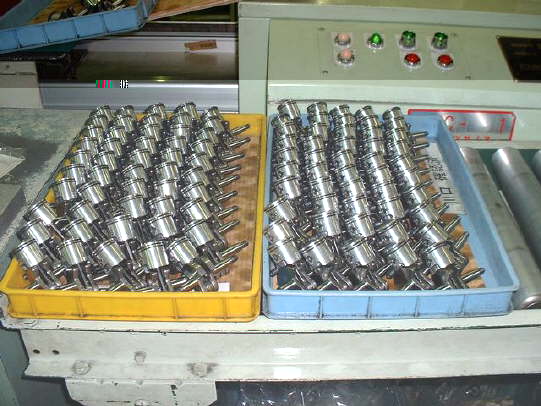

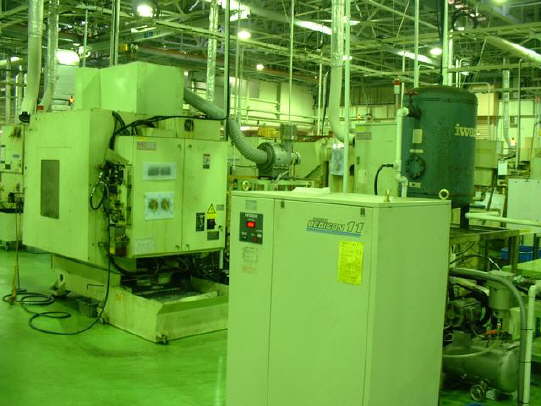

    Additional pictures from Mike Hoffmeister's visit to Komatsu-Zenoah!

  •



    Image Image Image
    Image Image Image
    Image Image Image
    Image Image Image
    Image Image Image
    Image Image Image
    Image Image Image
    Image Image Image
    Image Image Image
    Image Image Image
    Image Image Image
